Технические Характеристики
| ЧАСТЬ № | РИСУНОК | ФОНДОВЫЙ КОД | ИМЯ ЧАСТИ | РАЗМЕРЫ | ШТУКА |
|---|---|---|---|---|---|
| 1 |
|
308111 | MASURA RULMAN BYK DX 195 | 1 | |
| 2 |
|

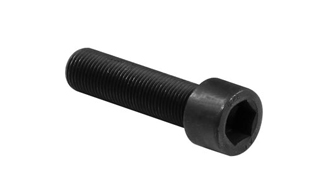

361127 | Болт M18x2.5mm/L=55mm направляющей суппорта | M18*2,5*55 | 1 |
| 3 |
|
313114 | DX 195-225 KALİPER ŞAFTI TEK | 1 | |
| 4 |
|
308110 | MASURA RULMAN | 1 | |
| 5 |
|

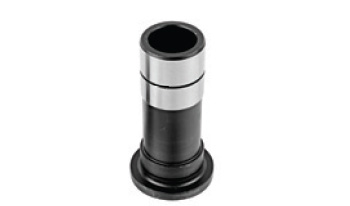

384506 | KALİPER PİSTONU - L- | 2 | |
| 6 |
|
362118 | PERNO TOZ LASTİĞİ KÜÇÜK | 2 | |
| 7 |
|
361118 | CİVATA | M12*1,75*30 | 4 |
| 8 |
|
361117 | CİVATA | M12*1,75*20 | 2 |
| 9 |
|
381112 | MEKANİZMA SEKMANI | 2 | |
| 10 |
|
375102 | PİM | 1 | |
| 11 |
|
362115 | DX 195 ALTIGEN LASTİK | 1 | |
| 12 |
|

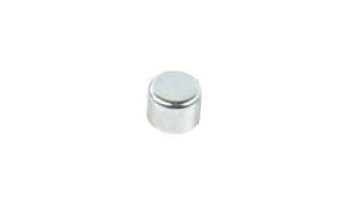

364112 | TAPA | 42x31 | 2 |
| 13 |
|
378106 | MEKANİZMA RAYNELİ | 2 | |
| 14 |
|
381108 | KOPİLYA | 1 | |
| 15 |
|
361501 | KALİPER AYAR CİVATASI -L- | 2 | |
| 16 |
|
362120 | ÜST LASTİK DX 225 | 2 | |
| 17 |
|
372112 | MEKANZMA YAYI | Ø28xØ23x18,50 | 1 |
| 18 |
|
362119 | SAÇLI LASTİK | 2 | |
| 19 |
|
370113 | DX 195 KEÇE | 1 | |
| 20 |
|
361116 | CİVATA İNBUS | M10*1,5*20 | 2 |
| 21 |
|
378104 | DX ŞAFT RAYNEL | 45,25*64*0,4 | 1 |
| 22 |
|
364119 | TAPA | 37*15 | 1 |
| 23 |
|
370112 | KEÇE | 35*44*8 | 1 |
| 24 |
|
361128 | PERNO CİVATASI | M18*2,5*90 | 1 |
| 25 |
|
373109 | TAPA PULU | Ø12,25*Ø15,25*1 | 1 |
| 26 |
|
370126 | YEŞİL KEÇE | 2 | |
| 27 |
|
371114 | CONTA | 1 | |
| 28 |
|
364111 | TAPA CİVATA | M12x1,25 | 1 |
| 29 |
|
361139 | BAĞLANTI CİVATASI | 1 | |
| 30 |
|
341102 | SABİTLEME ÇUBUĞU | 1 | |
| 31 |
|
307106 | KALİPER ŞAFT BİLYA YATAĞI | 1 | |
| 32 |
|
363129 | PERNO BURCU | 39*35*50 | 2 |
| 33 |
|
361119 | CİVATA | M8*1,25*20 | 2 |
| 34 |
|

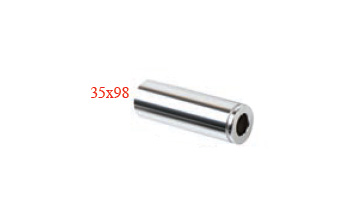

360122 | PERNO | 35x98 /68mm | 1 |
| 35 |
|
360121 | PERNO | 35x98/34,5 | 2 |
| 36 |
|
315507 | AYAR MEKANİZMASI TEK | 1 | |
| 37 |
|

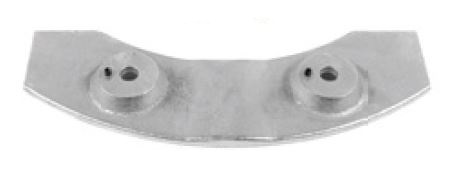

305105 | DX225 PLEYT | 1 | |
| 38 |
|
314103 | KALİPER ŞAFT LEVYESİ | 90MM | 1 |
| 39 |
|
303118 | KÜÇÜK DİŞLİ | 1 | |
| 40 |
|
303117 | BÜYÜK DİŞLİ | 1 | |
| 41 |
|
303111 | ALTI KÖŞE DİŞLİ | 2 | |
| 42 |
|
304102 | DÜRBÜN DX 225 | 1 | |
