Technicial Specifications
| PART NO | PICTURE | STOCK CODE | PART NAME | DIMENSION | PIECE |
|---|---|---|---|---|---|
| 1 |
|

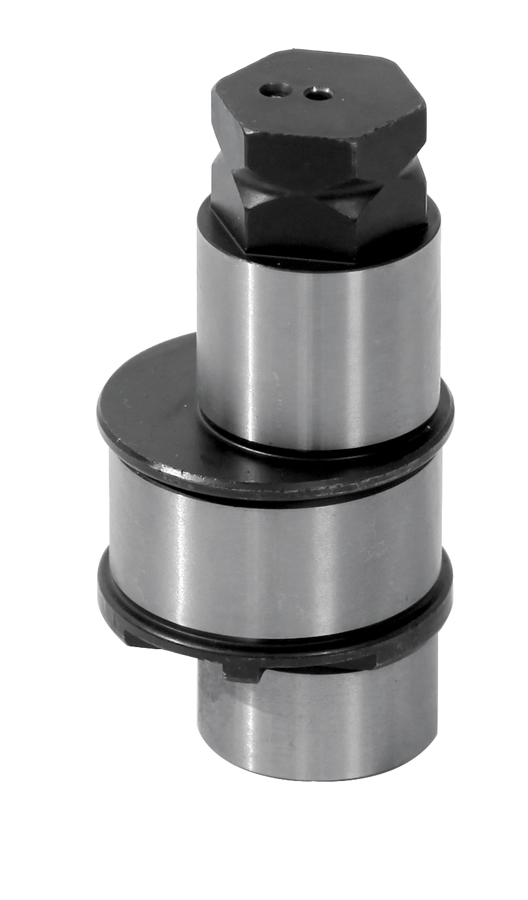

313113 | CALIPER SHAFT | 1 | |
| 2 |
|

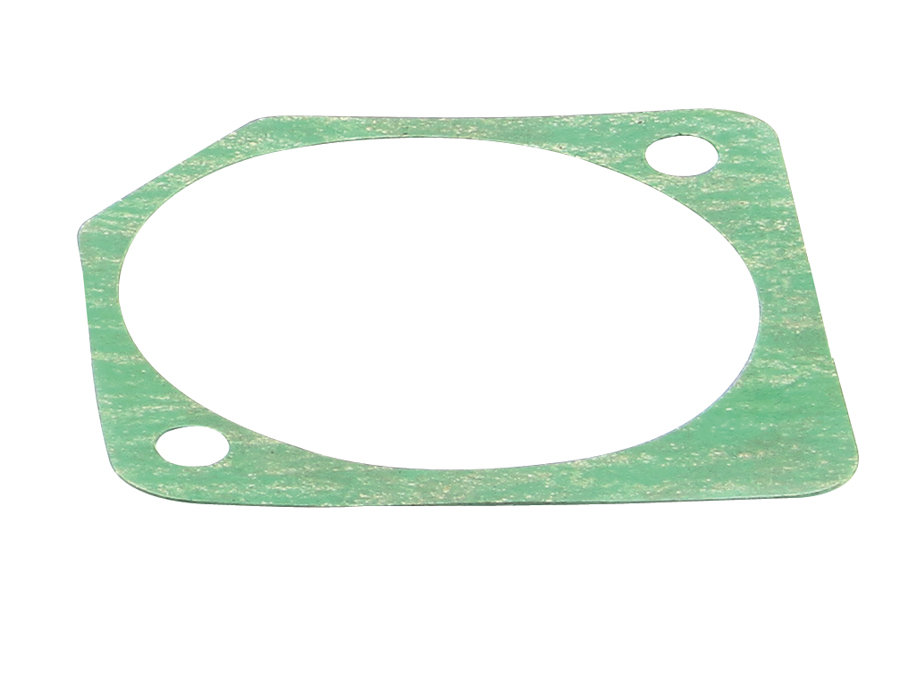

371120 | COVER GASKET | 1 | |
| 3 |
|

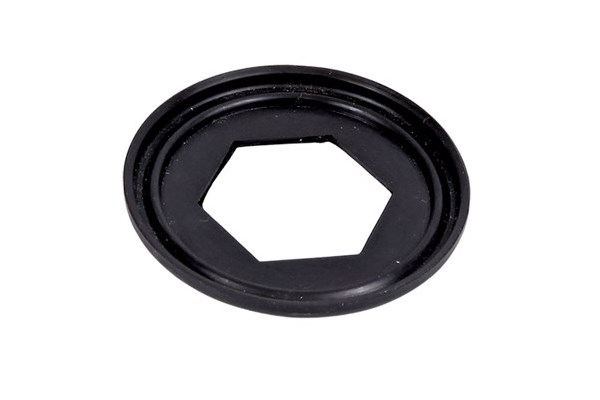

362125 | SHAFT RUBBER | 1 | |

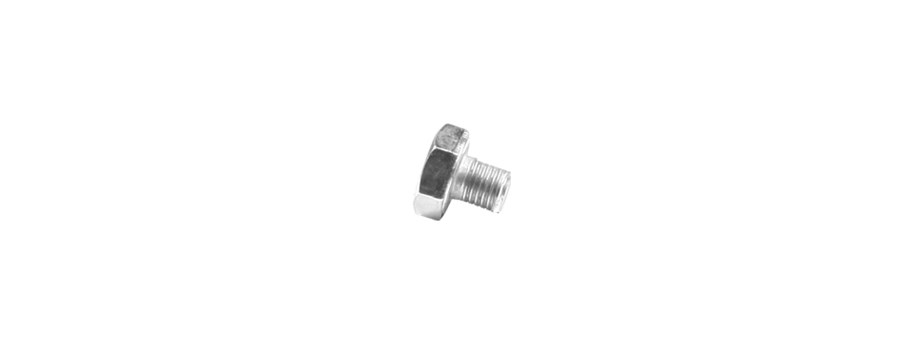

| 4 |
|
364122 | CAP BOLT | 1 | |

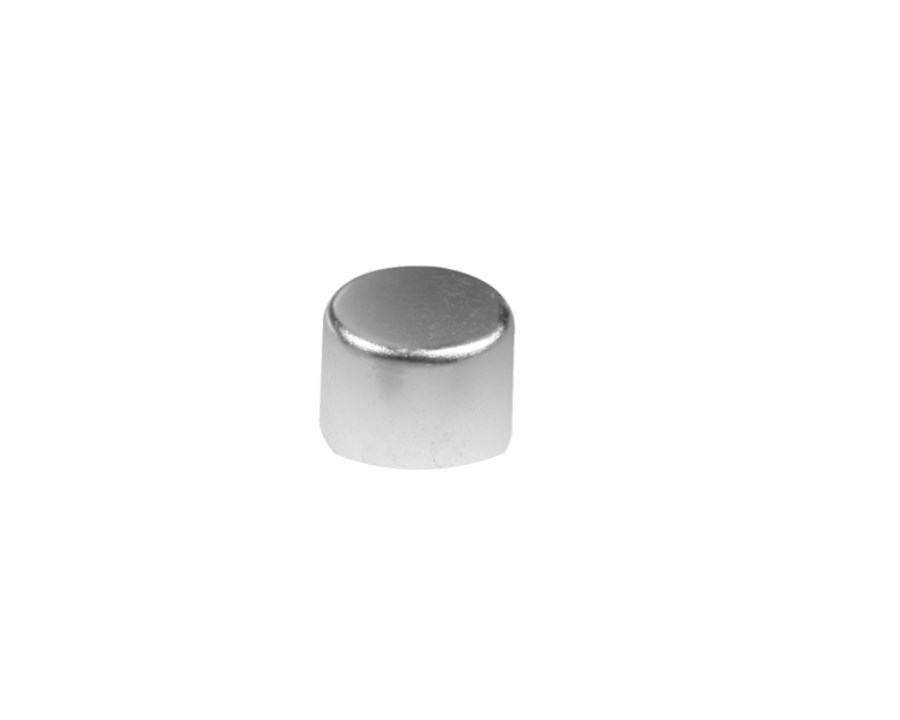

| 5 |
|
364121 | PIN CAP | 37x25 | 2 |

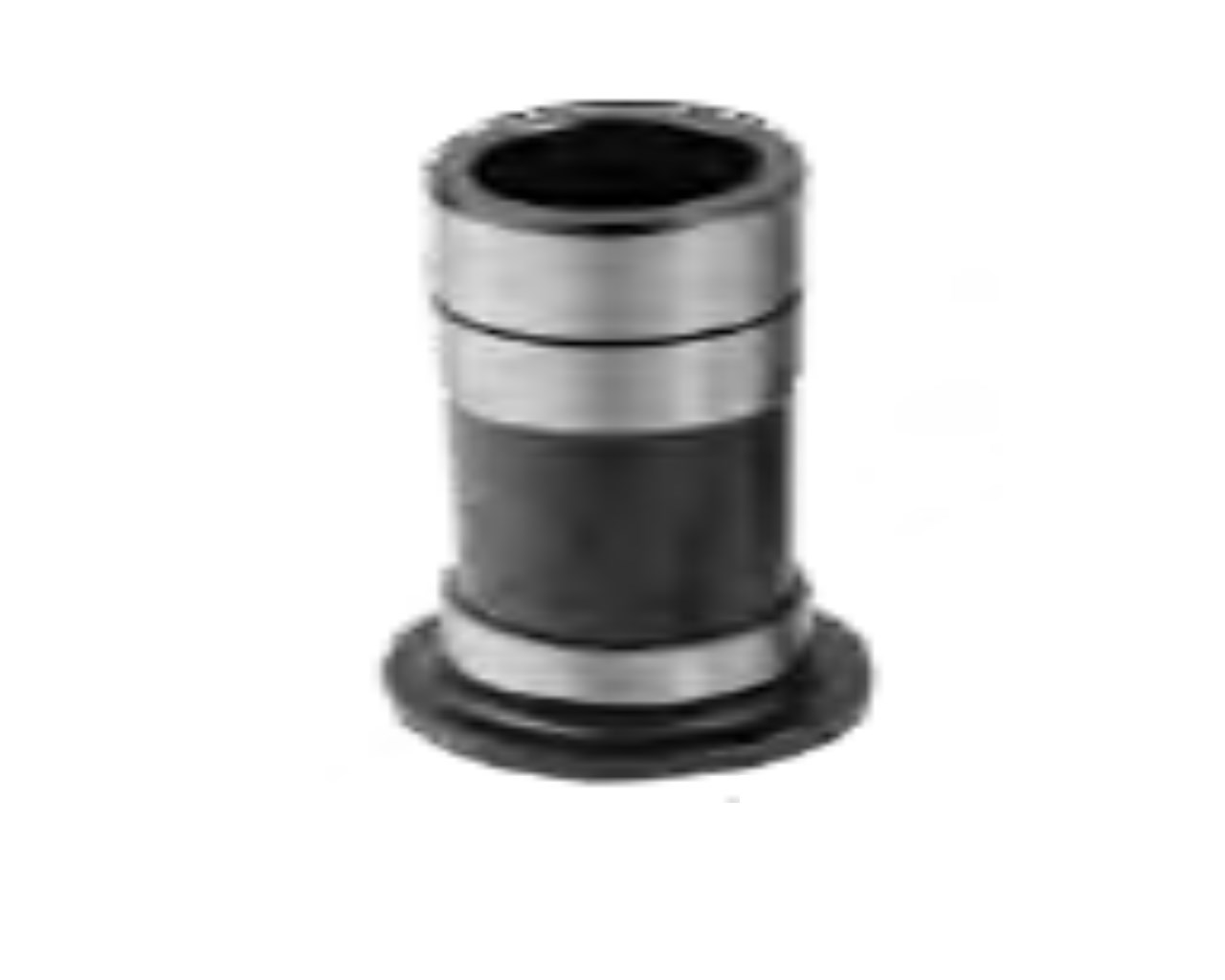

| 6 |
|
384411 | CALIPER MECHANISM PISTON -R- | 2 | |
| 7 |
|

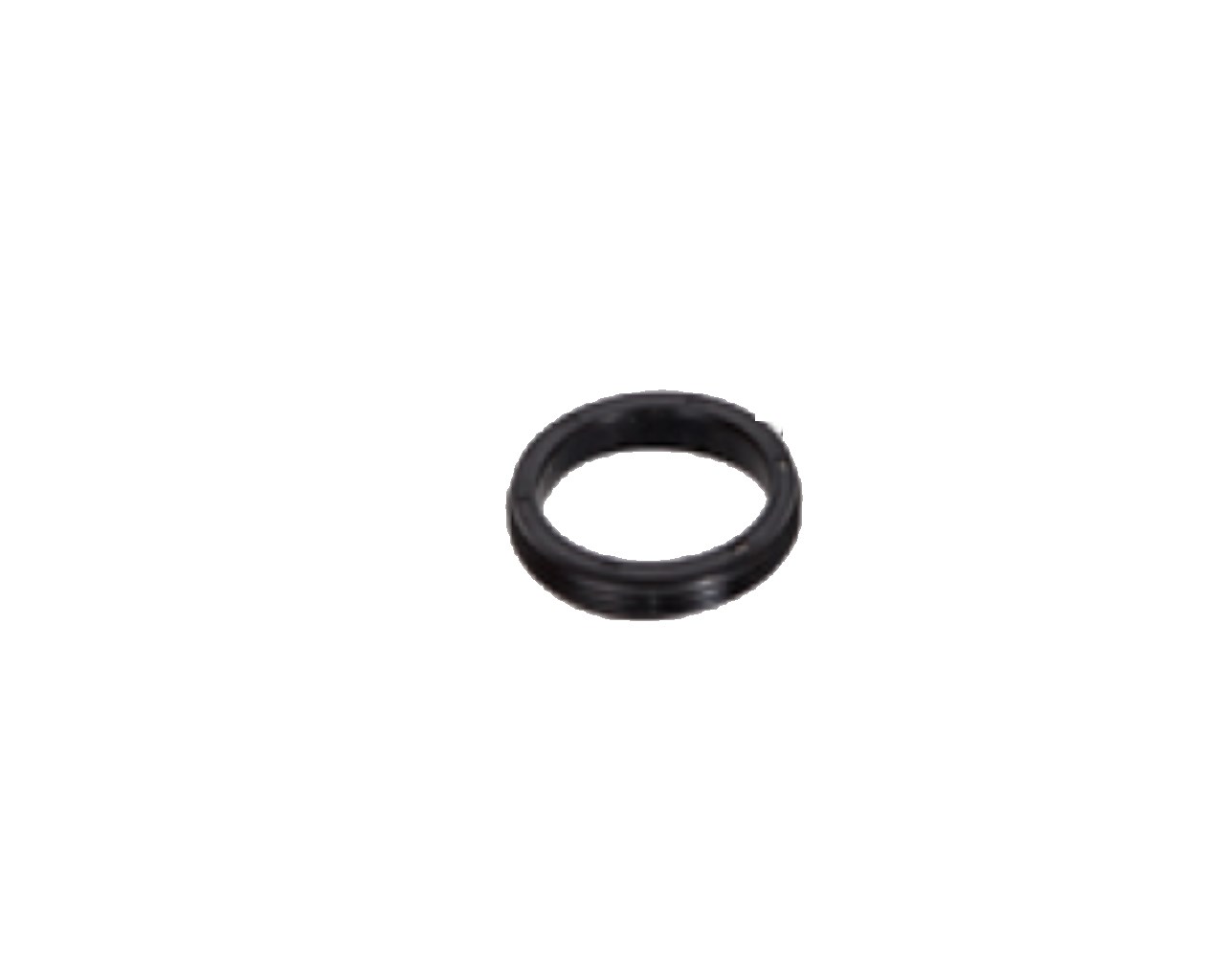

370128 | SEAL | 1 | |

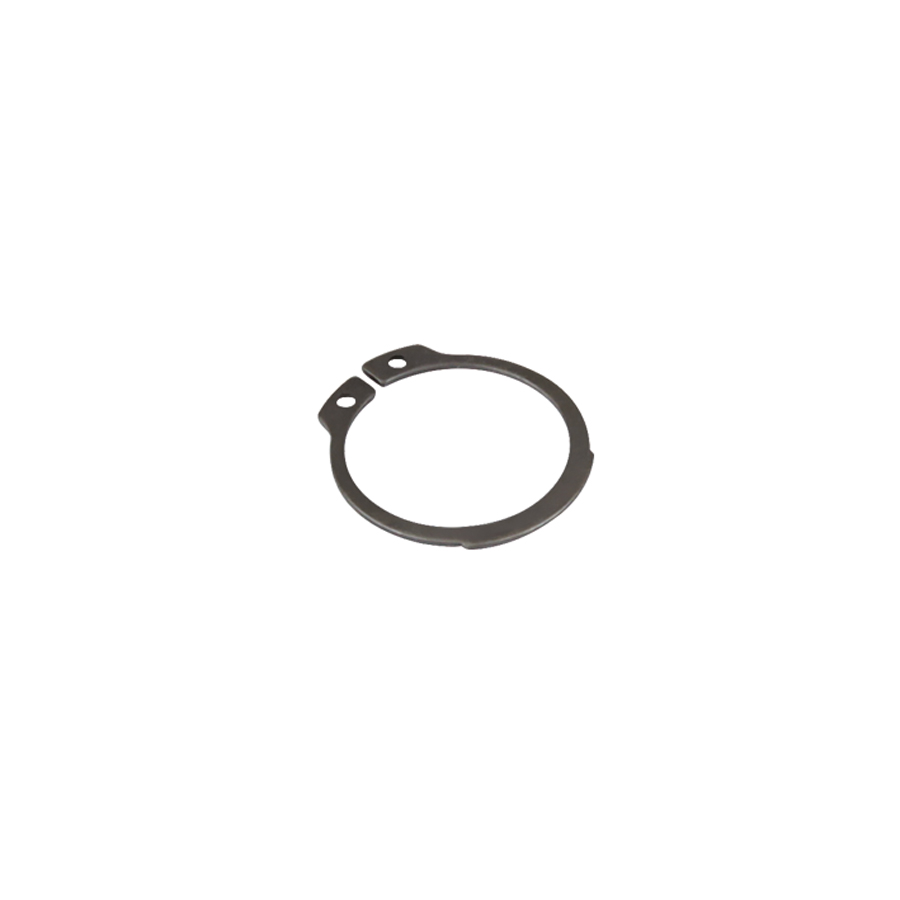

| 8 |
|
381111 | RING | 2 | |
| 9 |
|
375102 | PIN | 1 | |
| 10 |
|

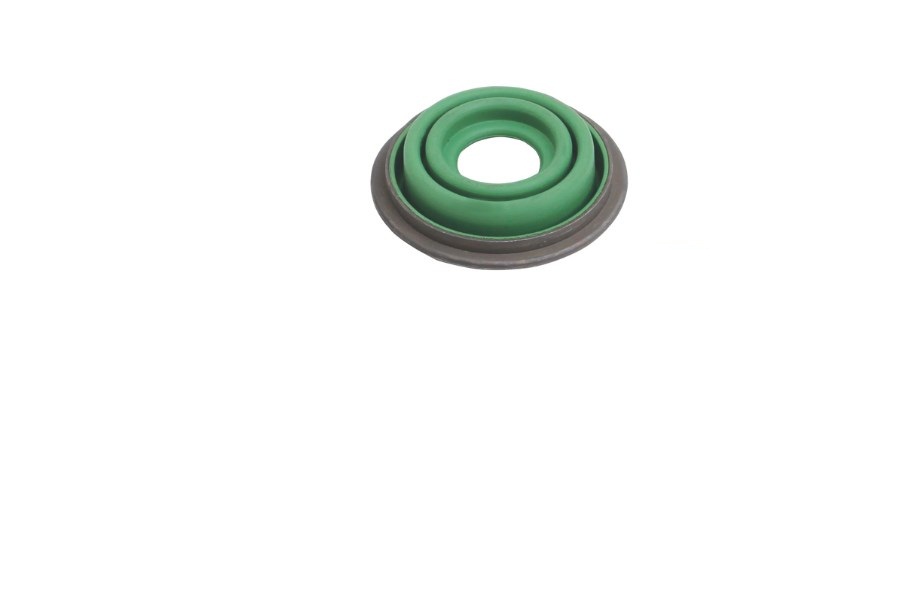

362121 | CALIPER DUST RUBBER | 2 | |
| 11 |
|

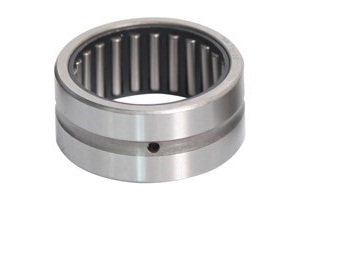

308123 | ROLLER BEARING | 2 | |
| 12 |
|
381108 | COTTER PIN | 1 | |
| 13 |
|

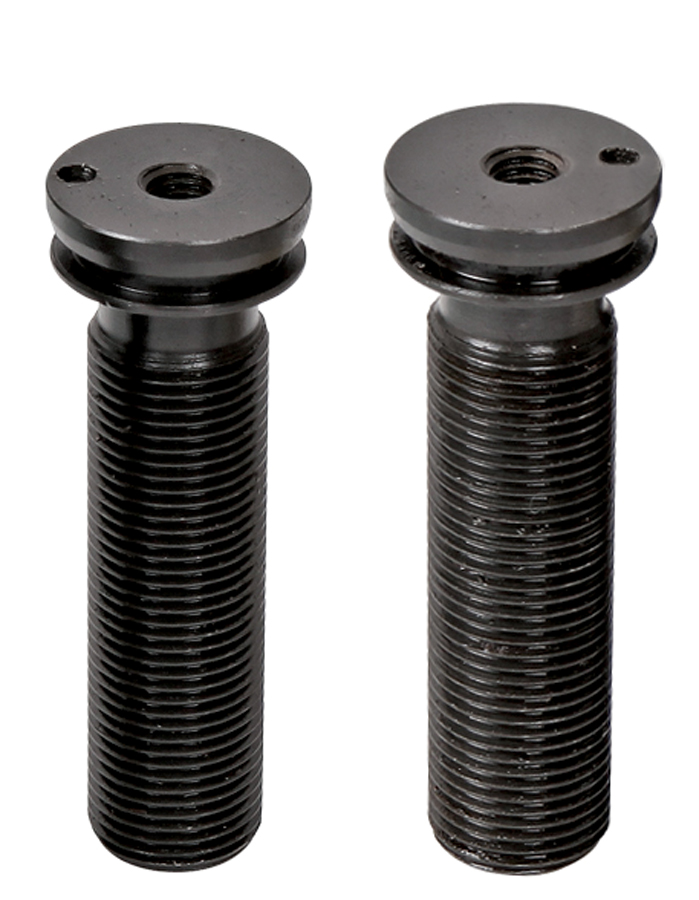

361502 | CALIBRATION BOLT -L- | 2 | |
| 14 |
|
372112 | SHAFT HOUSING SPRING | Ø28xØ23x18,50 | 1 |
| 15 |
|

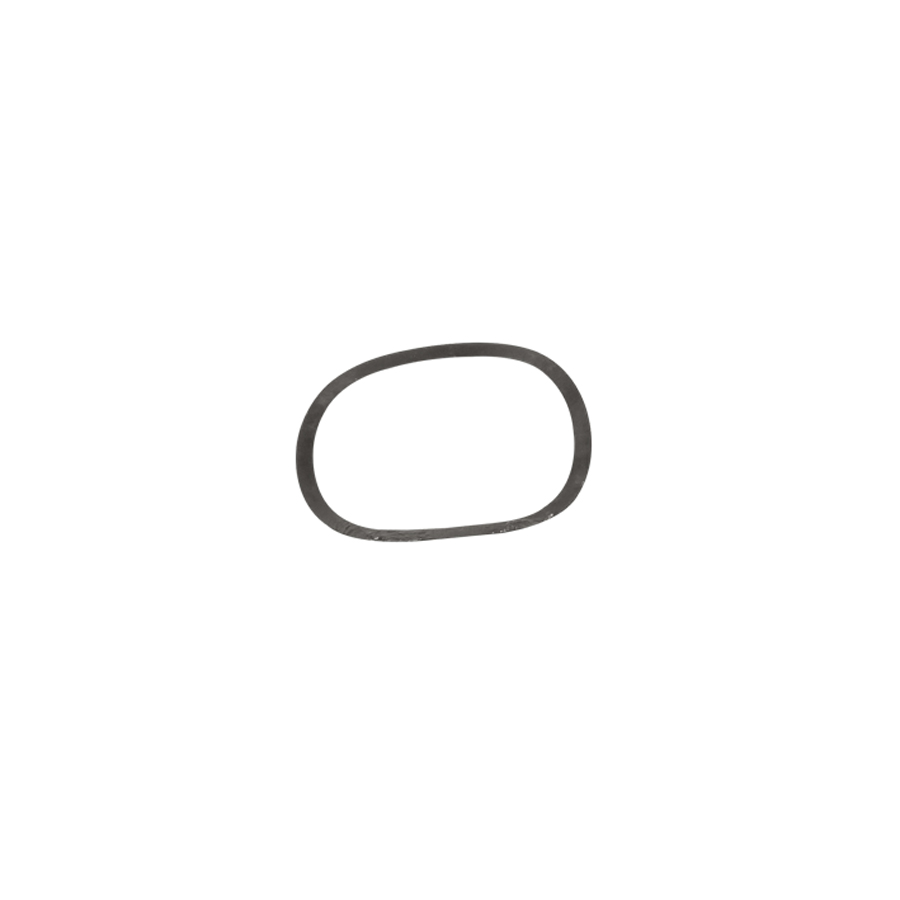

378105 | WAVY WASHER | 2 | |
| 16 |
|
364119 | CAP 37*15 MM | 37*15 | 1 |

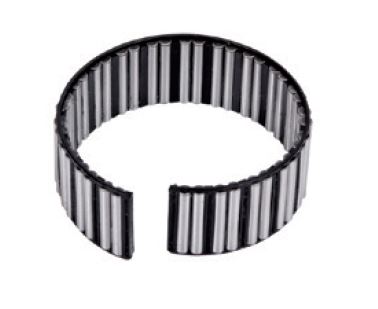

| 17 |
|
308122 | ROLLER BEARING | 1 | |
| 18 |
|
373109 | CAP WASHER | Ø12,25*Ø15,25*1 | 1 |

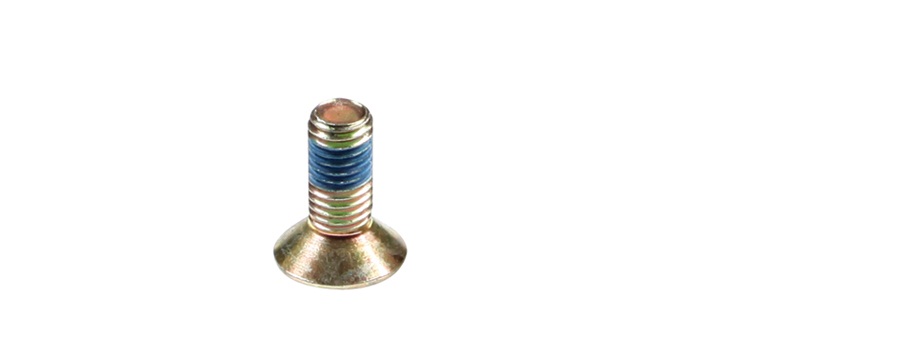

| 19 |
|
361136 | BOLT | M10x1,5x20 | 2 |
| 20 |
|
370126 | GREEN SEAL | 1 | |
| 21 |
|
361135 | PIN BOLT | M14x1,5x50 | 1 |

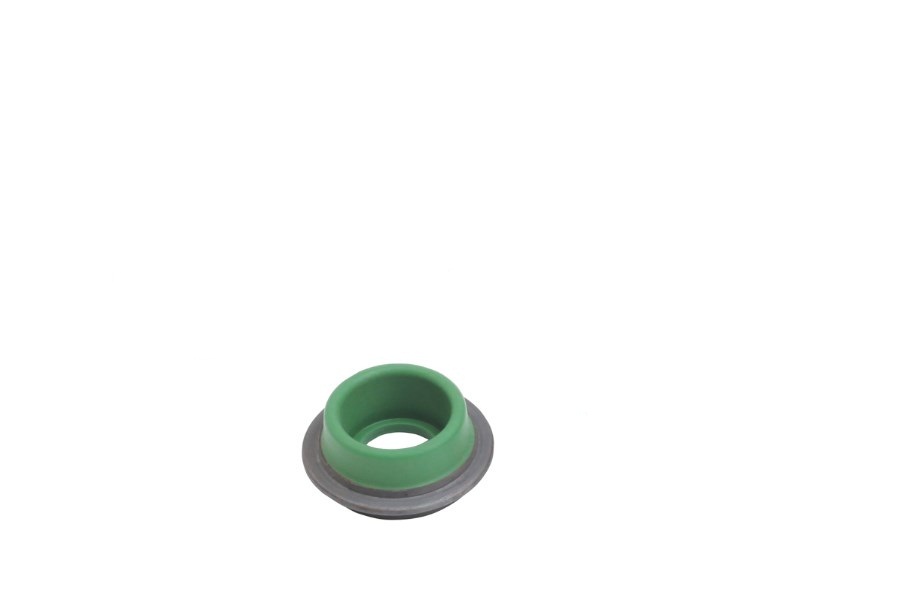

| 22 |
|
362122 | CALIPER DUST RUBBER | 2 | |
| 23 |
|
361139 | LOCKING BOLT | 1 | |
| 24 |
|

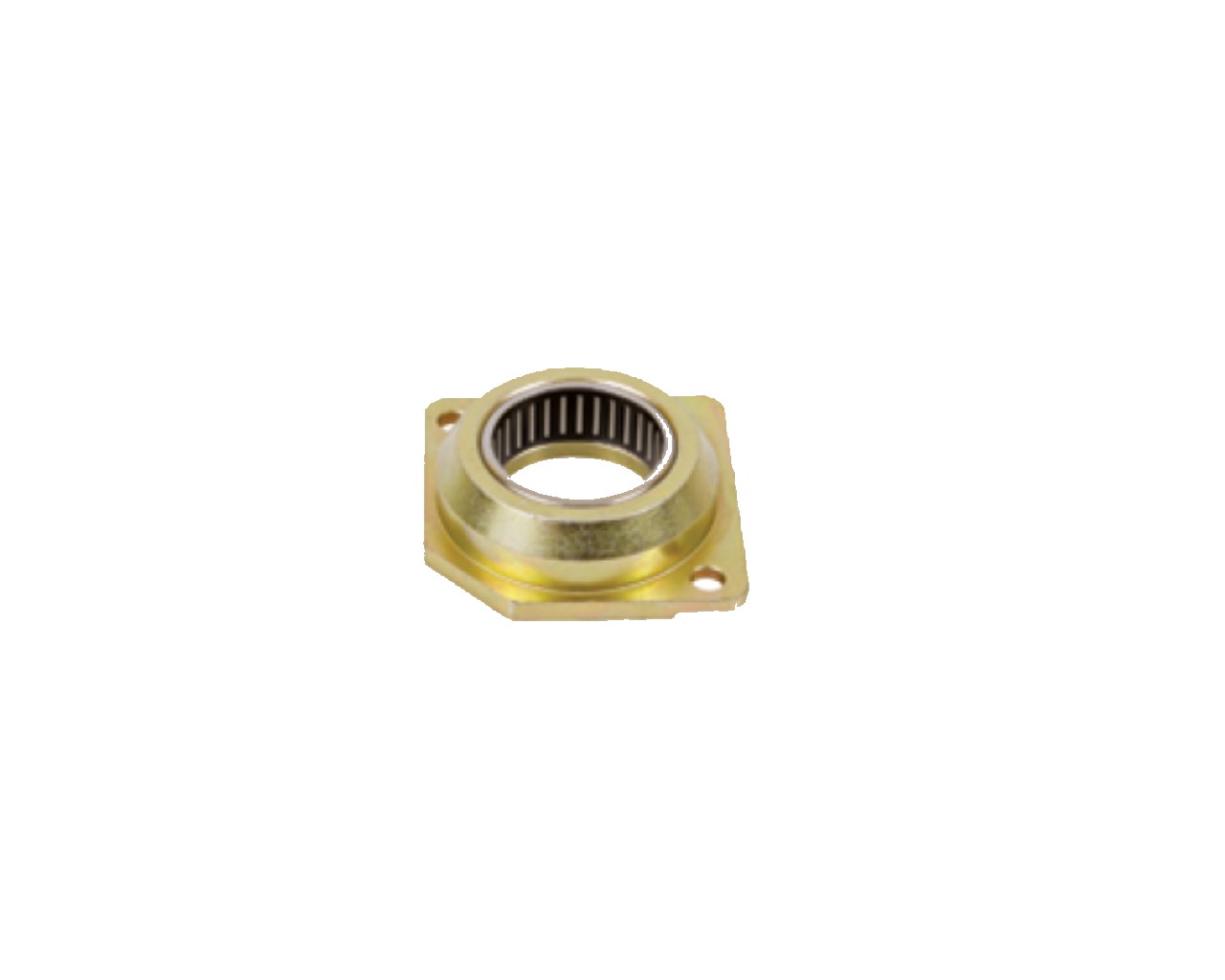

307133 | SHAFT BALL HOUSE (WITHOUT BEARING) | 1 | |
| 25 |
|

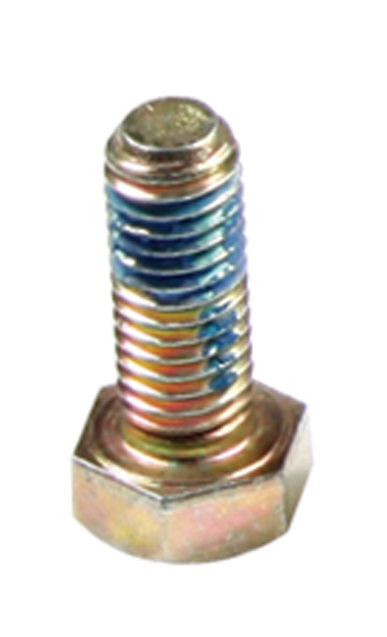

361138 | BOLT M 8*1,25*16 MM | M8x1,25x16 | 2 |
| 26 |
|

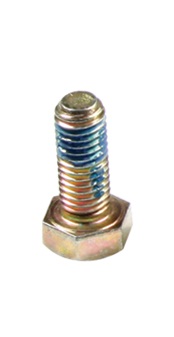

361137 | BOLT | M10x1,5x25 | 4 |
| 27 |
|

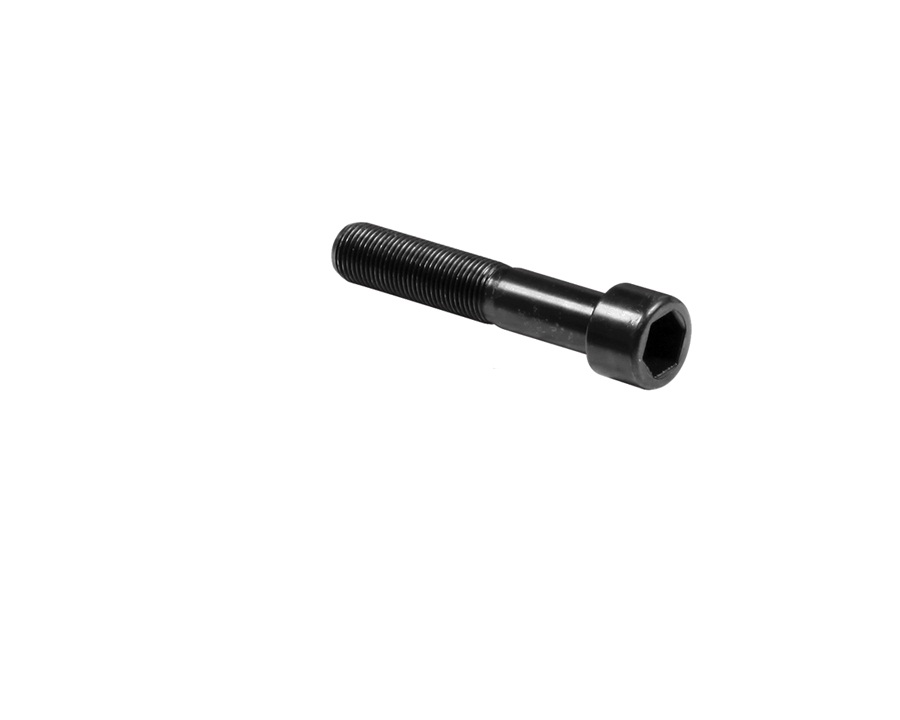

361134 | PIN BOLT | M14X1,5X70 DX175 | 1 |

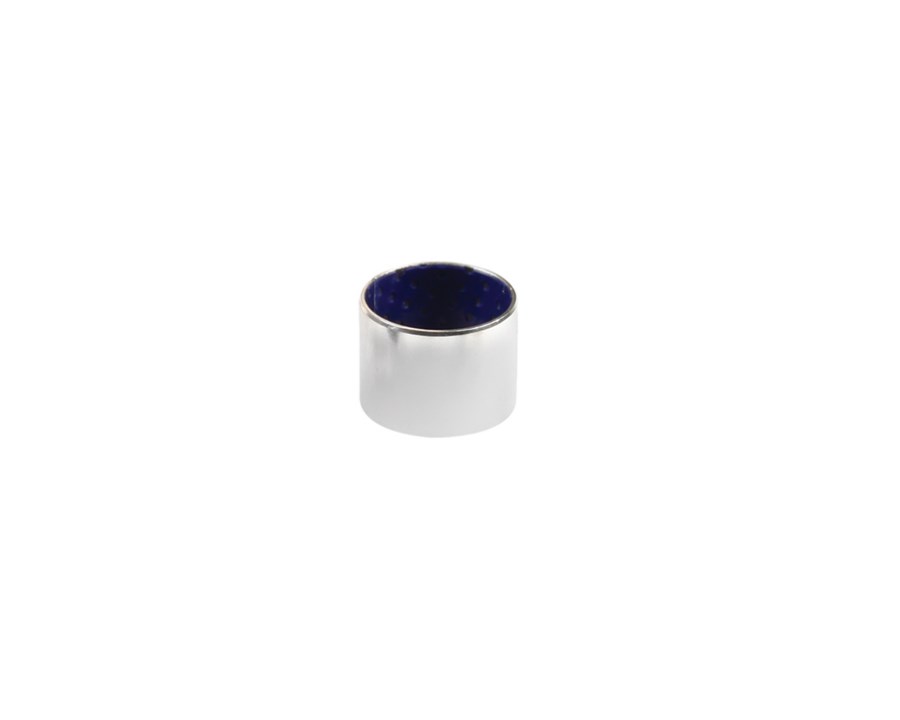

| 28 |
|
363135 | PIN BUSH | Ø28X32X24.8 | 4 |
| 29 |
|
360126 | 28*96 MM PIN | 28X96/44 | 1 |
| 30 |
|
361119 | M 8*1,25*20 MM BOLT | M8*1,25*20 | 2 |
| 31 |
|

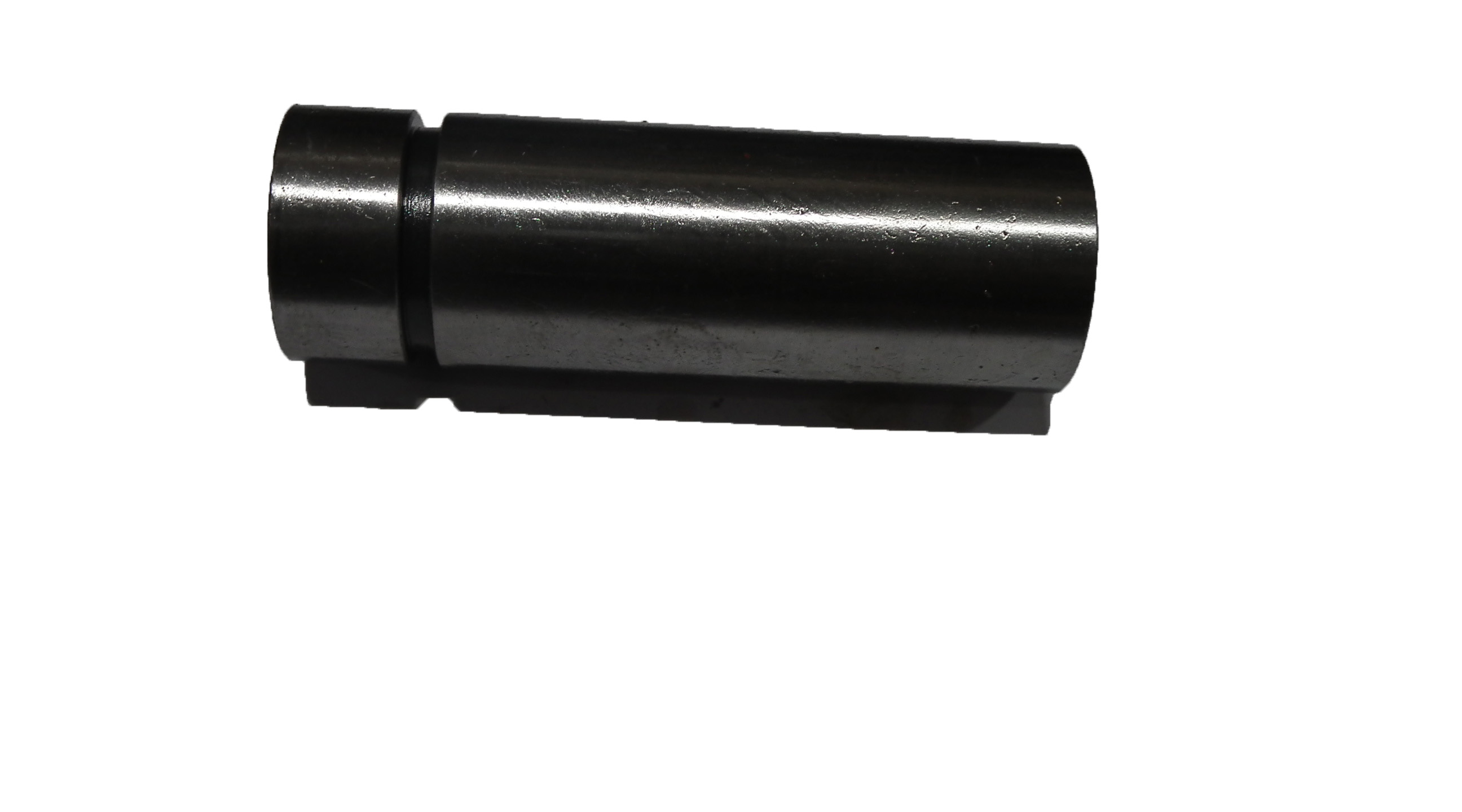

360125 | 28*96 MM PIN | 28x96/64 | 1 |
| 32 |
|

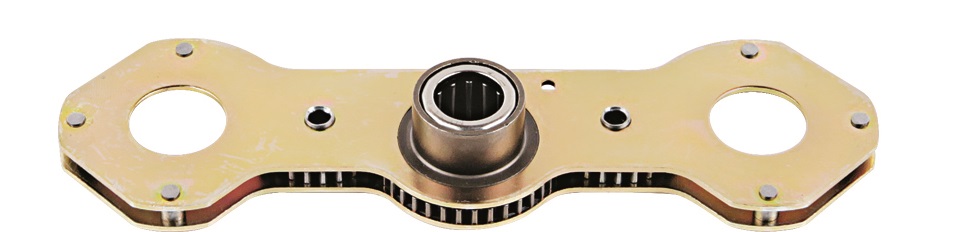

315411 | ADJUSTING MECHANISM -R | 1 | |
| 33 |
|
305106 | DX175 PLATE | 1 | |
| 34 |
|
341106 | CALIPER STABILIZER BAR | 1 | |
| 35 |
|
303115 | GEAR | 1 | |
| 36 |
|
304103 | CALIPER SHAFT HOUSING | 136MM | 1 |
| 37 |
|
303116 | GEAR | 1 | |
